Peak Power: 200W ± 5%

Open Circuit Voltage (Voc): 44.4V

Short Circuit Current (IOC): 5.95A

Maximum Power Voltage (Vmp): 36.6 V

Maximum Power Current (Imp): 5.45A

Solar Energy Conversion Rate: 19%-22%

Operating Temperature: -20 ~ 60 ℃/ -4 ~140 ℉

All technical data at standard test condition

E=1000W/m² TC=25℃ AM=1.5

Size: 2230 x 650 mm(87.8 x 25.6 in) / 650 x 515 mm(25.6 x 20.3 in)

Weight: 6.3 kg / 13.9 lb

• ▶【Huge Power to Output】: ALLPOWERS 200W portable solar panel kit is made from US, up to 22% efficiency and 1/3 lighter than the same power of solar silicon. 200W Output can provide more power to your devices and charge it faster.

• ▶【36.6V Compatible with Most Solar Generators】: ALLPOWERS 36.6V200W foldable solar panel is compatible with most portable power station on the market. The portable solar panel kit includes different sizes of connectors for portable solar generator( solar to xt60 /solar to DC ).

• ▶【Waterproof, Durable and safe】: The foldable solar panel 200W constructed with durable and waterproof IP66 nylon and adjustable bracket. It can help your devices receive the most effective sunlight safely.

• ▶【Foldable & Portable】: Folded size only 25.6x20.3x2.4inch,13.9lb, portable solar panel 200W is great for traveling the without electricity and won't take up much room in your bag. ALLPOWERS foldable solar charger features solar connector output(25A max), providing endless power for power station in camping, outdoor, garden, motorhome, and caravan under the sun.

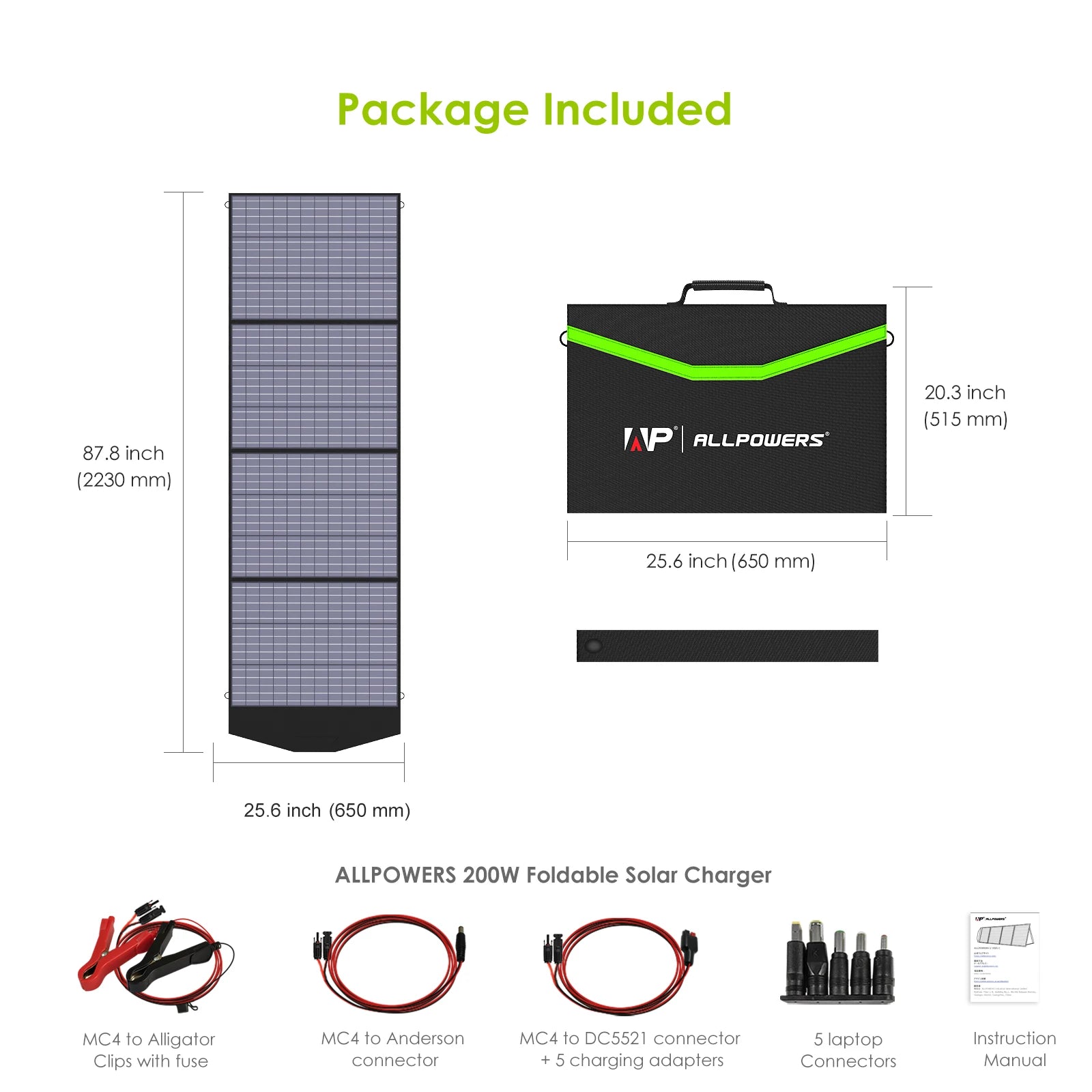

• ▶【Package Contents】: ALLPOWERS 200W foldable solar panel, solar to DC5.5x2.5mm cable, solar to xt60 cable, DC 8mm adapter, DC 3.5x1.35mm cable, DC 5.5x2.1mm cable, instruction manual

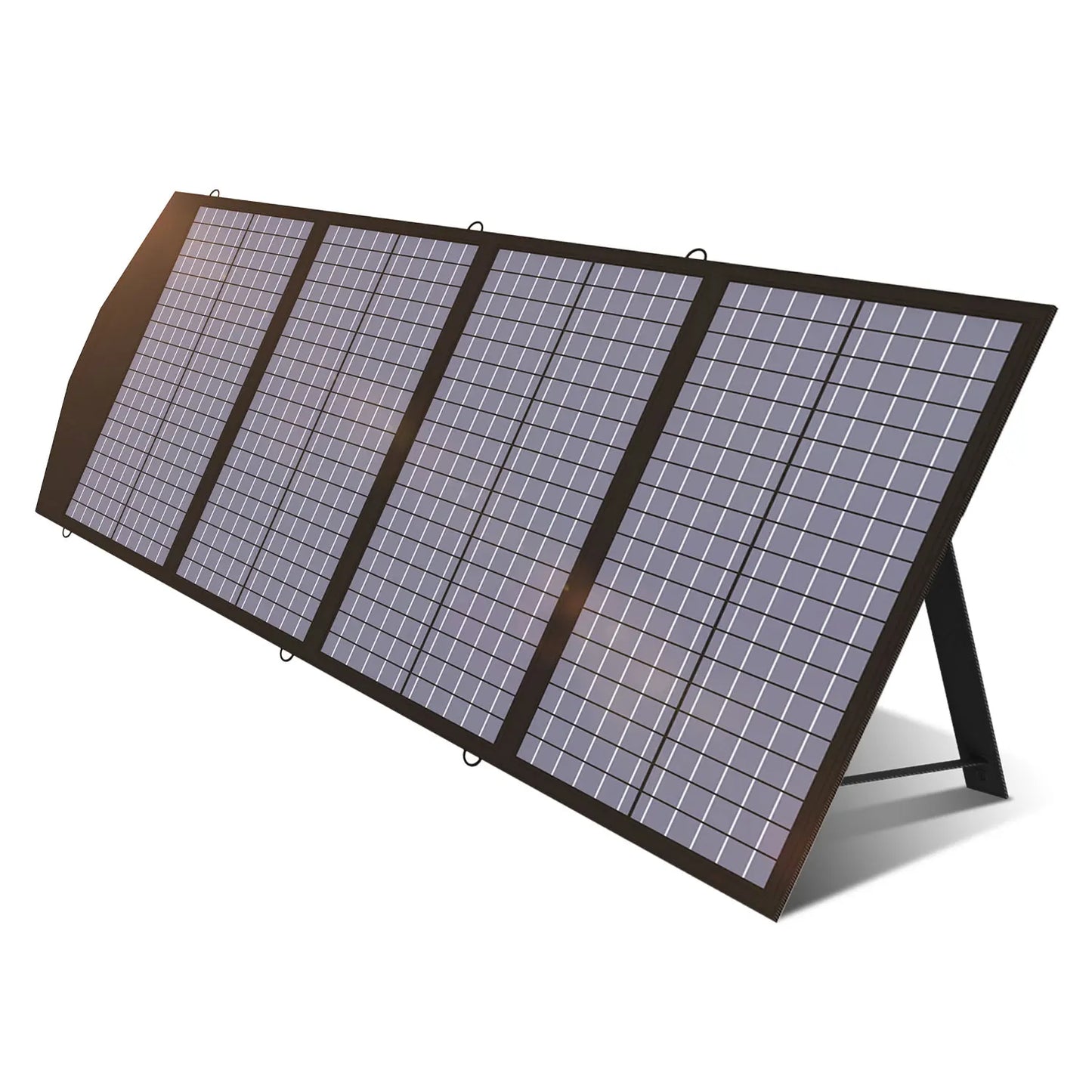

140W Solar panel

Peak Power: 140W

Solar Cell:polysilicon

Efficiency: 21%

Open Circuit Voltage (Voc): 23.5V * Short Circuit Current (IOC): 6.7A

Maximum Power Current (Imp):6.2A

Maximum Power Voltage (Vmp):19.5V

STC Irradiance 1000W/m²:STC Irradiance 1000W/m²

• ▶5 Output For Your Need: Solar-M-C-4 Output can deliver 25A(max)current, Dual USB-A port(5V/2.4A per port) for charging your 5V powered gadgets, and 18V DC outputfor charging your 12V car battery and portable generators, PD60W USB-C output for charging your laptop fastly. The junction box parallel connecting port for connecting multiple foldable solar panel.

• ▶High Efficiency: 140W solar cell is made from US, up to 22% efficiency, providing endless energy for laptop, power station,cellphone and other battery under sun

• ▶Foldable & Portable:1/3 lighter than the same power of solar slicon. The total power increased by 1/3 in compare with the same solar panel size. Folded size only 22x14.2x0.2inch, 9.9lb, Great for traveling off the beaten path without access to electric and won't take up much room.

• ▶Waterproof & Durable: Constructed with a durable and waterproof nylon and adjustable bracket to receive the most effective sunlight; Short circuit and surge protection technology keep you and your devices safe.

• ▶Package Contents：ALLPOWERS 140W folding solar charger, solar to 5.5x2.1mm cable, 5 laptop and power station connectors, instruction manual.

100W Solar panel

Peak Power：100W±5%
Connector: Multi-Contact 4 waterproof IP67
Open Circuit Voltage（VOC）：22.4V
Open Circuit Current（IOC）：6.0A
Maximum Power Voltage（Vmp）：18V
Maximum Power Current（Imp）：5.5A(max)
Solar energy conversion rate: 22%-25%
Operating Temperature：-20°С～60°С
All technical data at standard test condition(STC: E=1000W/m2 TC=25℃ AM=1.5)
Unfolded Size：103*68*1 cm±0.5cm / 40.6*26.8*0.39 inch±0.2 inch
Folded Size：68*51*2 cm±0.5cm / 26.8*20.1*0.8 inch±0.2 inch
Net Weight：2600g±50g/ 91.7oz ±1.8 oz

Outdoor Necessities
Industrial-strength PET plastic faced solar panels sewn into high-wear polyester canvas ensure it's able to withstand the trials of your outdoor adventures.

Advanced Safety
The solar panel is FCC, RoHS,CE certified. Short circuit and surge protection technology keeps you and your devices safe

Wide Compatibility
DC port: Laptops, 12V car battery and other devices under 18V.


Safety Protection
The solar panel is FCC, RoHS, CE certified. Short circuit and surge protection technology keep you and your devices safe.

60W Solar pane;

Why Choose ALLPOWERS Solar Charger?
ALLPOWERS Monocrystalline Dual USB solar charger has high efficiency conversion rate, the transformation efficiency is up to 21%, while most of the similar products on the market is 15% or even lower. Whether you're charging a generator phone laptop or refueling a power pack, solar power has you covered. Our foldable portable mono crystalline solar panels are rugged, reliable, and easy to use. Harness the sun with portable solar power wherever you are.


Outdoor Necessities
Equipped with a rugged water resistant, anti-shock, dust-proof exterior for outdoor use. Can also be affixed to your backup, bicycle or tent when you're out enjoying the great outdoors


Wide Compatibility
DC port: Designed to charge ALLPOWERS Portable Power Stations, laptops below 21V and 12V car battery.

USB port: smartphones, tablets, ipad, external battery packs, or any other 5V USB-charged gadgets.


Attention:
1. In the emergency(starting problem), you can charge the 12V battery directly with alligator clip cable then to restart your vehicles(Recommend charging time 2-3 hours only, for longer charging, please pair with a solar regulator.)
2. This item is solar panel, please put it under direct sunlight, cloudy weather may affect its normal working and power; it is suggested to close the laptop when charging.


Specification:
* Capacity: 60W

* Load Output: 2x 5V2.4A (Max.USB) 1x 18V4A(Max.DC)

* Solar Conversion Efficiency: 21%

* Dual Output: USB & DC5525

* STC Irradiance 1000W/m , T=25℃, AM=1.5

* Opened Size: 1070*435*5mm/42.1*17.1 *0.20in

* Compact Size: 435*360*20mm/17.1*14.1*0.8in

* Net Weight: 1.95kg/4.3lb


Warranty
18-month product guarantee from ALLPOWERS
